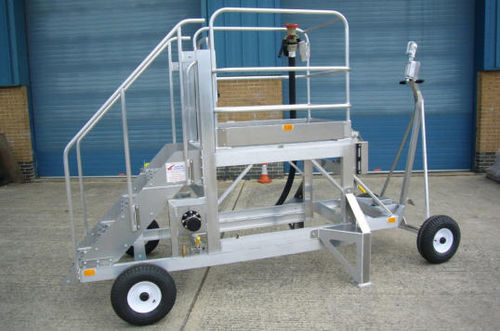

Fueling stepladder

for airplane

INTRODUCTION Aluminium and stainless-steel construction. Designed to be robust, but light weight and easily manoeuvred by a single operator. 4 off heavy-duty 470mm diameter wheels are used to aid manual manoeuvrability. Typical Dimensions: Length 4m, Height 2.8m, Width 1.9m OPERATING RANGE • Fixed height platform at 1700mm • Steps can be manufactured with the platform at a different height to suite a specific operation. STABILITY • Manufactured with front mounted out-riggers to guarantee stability. REFUELLING 1 x 2.5” ISO45 aviation coupling, fitted for connection to the refuelling vehicle. Main pipework constructed in 2” (50mm) Schedule 10 – 304 grade stainless steel. Single 2” refuelling hose with underwing nozzle. Option of adding additional pipework and a second refuelling hose and nozzle. Integrated thermal relief system & collector tank
