Inflight entertainment aircraft cabin display FD90AID-7

1024 x 600640 x 480800 x 480

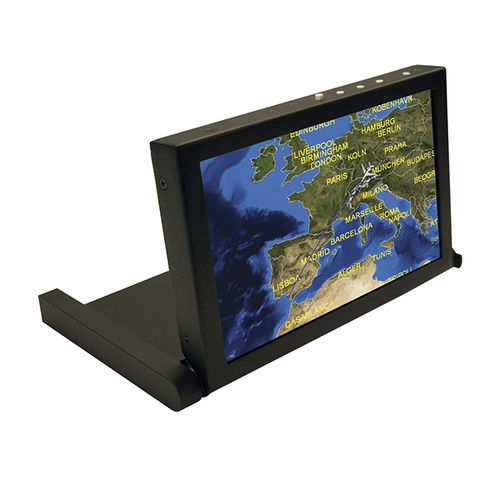

The FD90AID-7 is a 7” Flip Down Controller, which creates panel space where none previously existed. Description Features: This Rugged LCD Monitor provides an excellent opportunity to bring EVS video, satellite weather, or any other VGA Composite source into the cockpit with a low-profile, stowing display. The FD90AID-7 features a “face-out” display, which the pilot would open 90° to be viewed. The FD90AID is available in top or bottom mount configurations. The 7” flip display is available in a top mount (FD90AID-7-T) for mounting on top of the glare shield and a bottom mount (FD90AID-7-B) for mounting to the underside of the glare shield. The FD90AID-7 incorporates the use of a torsion spring, which deploys the unit up from the mounting plate when opened. It also has an automatic switch mechanism which enables the unit to automatically power off upon closing and power on upon opening. Key Facts: Provides EVS video, map information, satellite weather and more. Low-profile, stowing display. Also available in a bottom mount version Specifications Overall Dimensions - Open: 7.8”(W) x 4.7”(H) x 5.0”(D) Closed: 7.8” (W) x .89” (H) x 5.0” (D) Weight - 1 lb 8 oz Power - 12VDC @ .6AMPS 28VDC @ .3 AMPS Video Inputs Supported - (1) Analog RGB, (2) Composite Video Materials - Aluminum Brightness - 450 cd/m²
