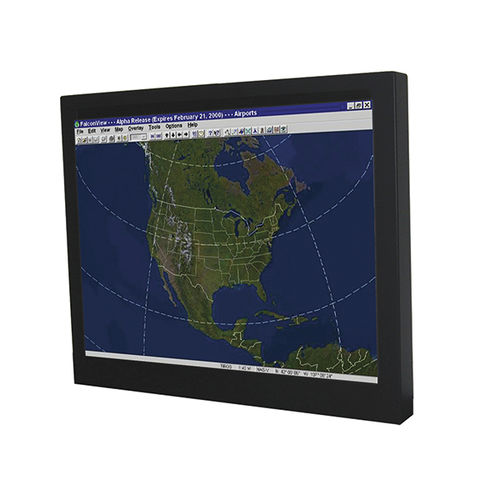

Inflight entertainment aircraft cabin display FD201CV-LP

1600 x 1200HD

The FD201CV-LP Ver HD is a 20.1″ High-Definition Low-Profile Widescreen LCD which has features that allow installation in the smallest of mounting areas with the minimum of interface equipment. Description The FD201CV-LP Ver HD, 20″ HD Low Profile LCD utilizes a state of the art digital video decoding chipset for the analog video input. There are FIVE video source inputs available. They are in order of picture quality: (2)HDMI (Hi-Def video, such as Blu-Ray DVD or Playstation 3), (1)VGA (computer graphics like Moving Maps), (1) S-Video and (1) Composite Video (DVD, camera or VCR). Both NTSC and PAL formats are auto-detected. The FD201CV-LP Ver HD can also be connected to existing video switchers and use only a composite video input from a selector interface box. In this case, the IR remote will only be used to set up the screen after installation. e.g. adjust brightness, contrast, etc. The LCD is protected with a .060” Lexan lens. The purpose of this lens is to prevent scratching of the LCD and reduce glare. The FD201CV-LP Ver HD is made of all metal components. DO-160 testing has been completed and is available upon request. Specifications Dimensions - 18.00”(W) x 15.13”(H) x 1.65”(D) Weight - 12 lbs. 9 oz. Power - 28VDC @ 3.0 AMPS PC & Video Input - VGA (High Density DB-15 Connector), S-Video, Composite, HDMI (2) Enclosure Materials - Aluminum Brightness - 450 cd/m² Display Size - 16.1”(W) x 12.1”(H) Viewing Angle - 176º on Both Axis
