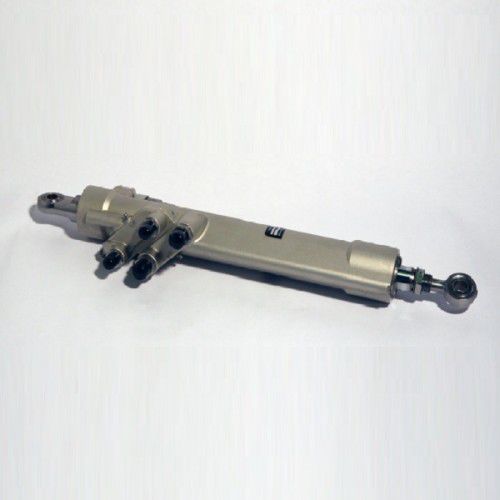

Hydraulic actuator linearfor aircraftpiston
Add to favorites
Compare this product
Characteristics
- Type
- hydraulic
- Movement
- linear
- Applications
- for aircraft
- Technology
- piston, double-acting
- Stroke
206 mm
(8.11 in)
Description
This Hydraulic Actuator is an unbalanced, double effect linear actuator featuring:
Mechanical locking device to hold the retracted position.
Proximity switch and relevant electrical connector.
TECHNICAL DATA:
Operating Temperature: -54°C +85°C
Fluid Temperature: -54°C +135°C
Operating Pressure: 3000 psi (207 bar)
Unit Weight: 2.1 kg
Piston Load (Retraction): 10400 N
Piston Load (Extension): 9200 N
Piston Speed (Retraction): 0.2 m/sec max
Piston Speed (Extension): 0.2 m/sec max
Employed On: UAV
