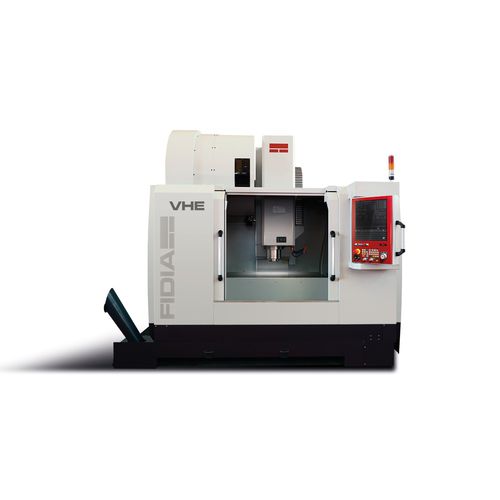

CNC milling machine VHE series

verticalfor aeronautics3-axis

Starting from the compact version VHE1166 (1.100x610x610) mm, the VHE machining centers standout for the high robustness of their cast iron structure. Such a structure allows for high removal volumes of material, and is extremely indicated for all the applications like stamping dies, and mechanical machining, requiring high spindle torque. High performance 3-axis machines with a moving table. The C-frame structure, with an extremely robust base and column, is generously proportioned to guarantee maximum rigidity, stability, lasting quality and accuracy. VHE models are equipped with reinforced box-type guideways in hardened steel, specifically for heavy duty removal. High Torque Vertical Machining Centers: long lasting quality and precision. Pneumatic compensation on vertical axis with double cylinder grants excellent dynamic response. Table 1270x640mm (50”x25”), max. load 1200 kg. Rapid speed 30 m/min High Torque spindle ISO50 6000RPM 12kw/18.5kw, ZF 1:4, 2 speeds gear box, max. torque 708 Nm Swing arm ATC with 24 positions Optional: 20 or 40 Bars tool lubrication through spindle Machine characteristics: The structures are fully made of GGG40 cast iron with superior damping properties, engineered with FEM analysis. 3 axis high performance C-frame moving table architecture with high rigidity base and column. Column generously dimensioned (> 5500 kg net weight) to grant maximum rigidity and stability.
