CNC milling machine GTF/R
verticalfor aeronautics3-axis

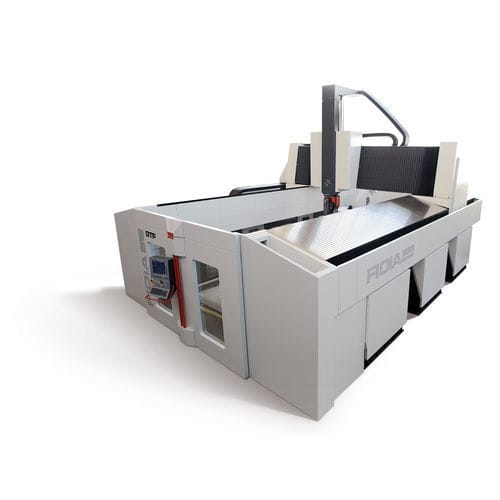

CNC milling machine - GTF/R - FIDIA SPA - vertical / for aeronautics / 3-axis

CNC milling machine - GTF/R - FIDIA SPA - vertical / for aeronautics / 3-axis - image - 2

CNC milling machine - GTF/R - FIDIA SPA - vertical / for aeronautics / 3-axis - image - 3

CNC milling machine - GTF/R - FIDIA SPA - vertical / for aeronautics / 3-axis - image - 4

CNC milling machine - GTF/R - FIDIA SPA - vertical / for aeronautics / 3-axis - image - 5

CNC milling machine - GTF/R - FIDIA SPA - vertical / for aeronautics / 3-axis - image - 6

CNC milling machine - GTF/R - FIDIA SPA - vertical / for aeronautics / 3-axis - image - 7

CNC milling machine - GTF/R - FIDIA SPA - vertical / for aeronautics / 3-axis - image - 8

CNC milling machine - GTF/R - FIDIA SPA - vertical / for aeronautics / 3-axis - image - 9

Add to favorites

Compare this product

Characteristics

Type

CNC

Spindle orientation

vertical

Other characteristics

for aeronautics, 3-axis

X travel

5,200 mm, 7,600 mm, 10,000 mm, 12,400 mm, 19,600 mm
(204.72 in, 299.21 in, 393.7 in, 488.19 in, 771.65 in)

Y travel

2,200 mm, 3,500 mm, 4,000 mm, 5,000 mm
(86.61 in, 137.8 in, 157.48 in, 196.85 in)

Z travel

Max.: 2,500 mm
(98.43 in)

Min.: 1,000 mm
(39.37 in)

Description

Made of stiff epoxy concrete columns to allow the best vibration dampening effect, these versions of GTF family have the greatest level of modularity, thanks also to the automatic heads changing system. Starting from the smallest 2+2 columns configuration, the same design can be extended to any X axis length just by adding columns. The GTF/R integrates a 600 x 600 mm ram. Consequently, this version offers a wide range of heads to choose from: The axes kinematic chains may vary in order to achieve the highest working speed and acceleration. A tandem rack & pinion system drives X and Y axes, while Z axis is driven by rack & pinion, according to the stroke length and application.
