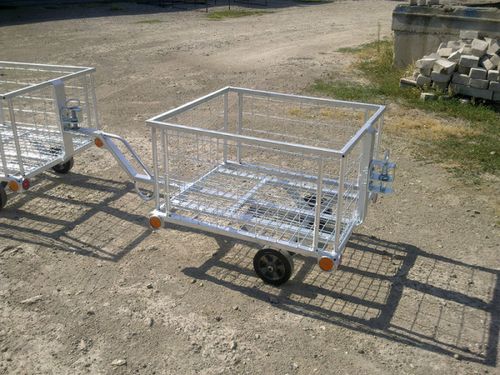

Handling trolley FST 250

Purpose: Service Trolley FST- 250, with loading capacity 250 kg, is designed for service equipment – brake shoes, fencing cones to the parking zone of an aircraft. The trolley is uniaxial with the axle rigidly fixed to the trolley’s frame. FST- 250 service trolley size: length,with drawbar - 1945mm; width – 850 mm; height – 750 mm; Body dimensions: external - 950х850х500 mm, internal - 900х800х470мм; Height of the drivebar and towbar couplings parts from the ground level is 450mm; Body structure – tubular; Bottom and side flanks are protected with welded mesh: bottom - 50х50х3,8mm; side flanks - 100x100x3, 8mm. Wheels – 2 pcs.: disk – aluminum; tire – solid, casted from elastic rubber, 200 mm diameter, protector layer width – 50 mm, hub - tubular on 2 ball bearings 204, semiaxis - ф20mm.; Coupling appliances – drawbar with hinge,25mm diameter; When driving with max speed up to 6 km / h, up to 10 trolleys can be coupled in one hitch. Protective covering : hot zinc; The trolley is equipped with reflective cataphytes, optionally can be equipped with a special info plate to display additional information.
