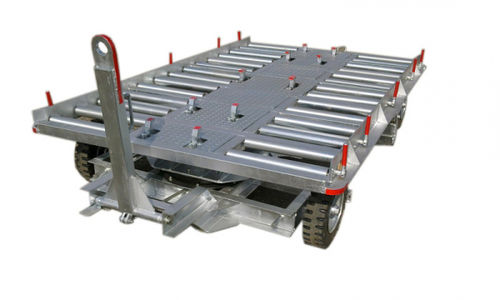

Container dolly FCD 2500

2-axlefor air cargofor airport

FCD-2500 container dolly is designed for the transportation of LD-1, LD-2, LD-3, LD-4 and LD-8 in closed areas (airports, airfields, etc.) The trolley is build up on two frames: lower and upper. Lower frame is fixed on four wheel bearings, the upper frame, with the rollers, is swivel and fixed to the bottom by a turntable of f650mm, with supporting polyamide rollers. Platform size: 2800 x 1710 mm; Maximum movement speed: 25 km/h; Frontal axel – swivel, on turntable base ( 500 mm diameter) Rear axle – fixed to the frame. wheels – 4.00-8 – superelastic; On the swivel frame there are 28 rollers with bearings, 180204 series (2pcs per roller). The trolley is equipped with a parking brake to immobilize the trolley when the drivebar is raised in a vertical position (80 ° ± 1 °). A towbar with a spring-loaded finger ensures a reliable connection of FCD-2500 trolleys, providing great maneuverability during movement. A durable bearing assembly provides steady movement over uneven surfaces, while traveling on a long distance. The design of the hub excludes the possibility of the wheel falling during transportation in case of wearing of the bearing assembly . The trolley is equipped with safety elements in the corners, providing protection from impacts, as well as light reflecting elements.
