Airport lighting Trimless series

LEDmountingceiling

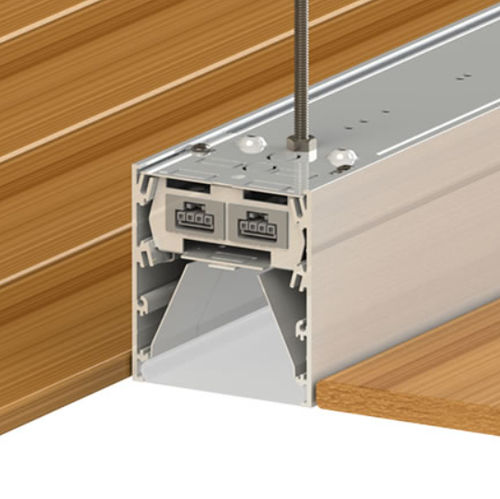

The Regolo trimless series is designed for applications not suited for flange or mud ring installations. This product is ideal for ceiling materials that are thicker than 1-1/4" and must have precise straight edges for a clean appearance. The product requires 1/4-20 threaded rods and hardware, by others for a proper installation. Construction: The housing consists of extruded aluminum side rails with formed cold rolled steel back channel and heavy gauge end caps. Housing can be joined together for continuous row applications. Standard finish is powder coat textured white. Optional silver, black or custom color paint finishes. Reflector / Driver: Reflector / driver cover is finished with high reflectance white paint. Constant current electronic driver with 0-10V dimming input; dimming range from 100% down to 10%. Universal (UNV) voltage is from 120 - 277V, 50/60 Hz. Shielding: Extruded frosted acrylic or satin white acrylic snap-in lens with DR. LED Module: Distributed LED array in a variety of lumen output packages. LED color is available in (L30) 3000K, (L35) 3500K or (L40) 4000K. Module is replaceable. L90 ≥ 100,000 hours. Mounting: Recessed, individual or continuous row. Labels: ETL listed, conforms to UL Standard 1598 / 8750 and CSA Standard C22.2, Damp location. Warranty: 5-year limited warranty on LED and Driver.
