Airport lighting Flange series

LEDmounting

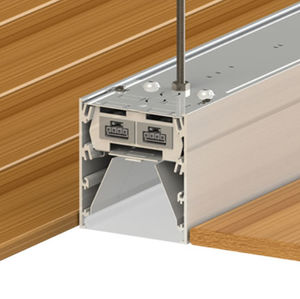

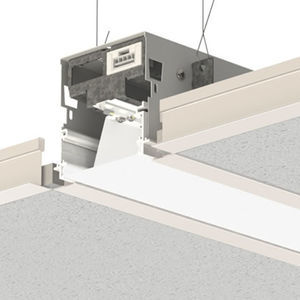

The Regolo flange series is designed to be installed into inaccessible ceiling applications. Flanged units are supplied with adjustable support yokes to work with ceiling materials between 3/8” to 1-1/4” thick. Nulite provides a ceiling jig for each order to ensure a proper cutout for a quality installation. Construction: The housing consists of visible extruded aluminum flange trim rails with formed cold rolled steel back channel and heavy gauge end caps. Stainless steel alignment tabs and white snap-in joiner clips are used for continuous row applications. Luminaire is finished textured white. Reflector / Driver: Driver cover / pan is finished with high reflectance white paint. Constant current electronic driver with 0-10V dimming input; dimming range from 100% down to 10%. Universal (UNV) voltage is from 120-277V, 50/60 Hz. Shielding: Extruded frosted acrylic or satin white acrylic snap-in lens with DR, Flush or Regress. LED Module: Distributed LED array in a variety of lumen output packages. LED color is available in (L30) 3000K, (L35) 3500K or (L40) 4000K. Module is replaceable. L90 ≥ 100,000 hours. Mounting: Flanged for inaccesible ceiling types. Non-IC rated. Labels: ETL listed, conforms to UL Standard 1598 and 8750. Damp location listed. Warranty: 5-year limited warranty on LED and Driver.
