Taxiway light PRO APF

for airportLEDgreen

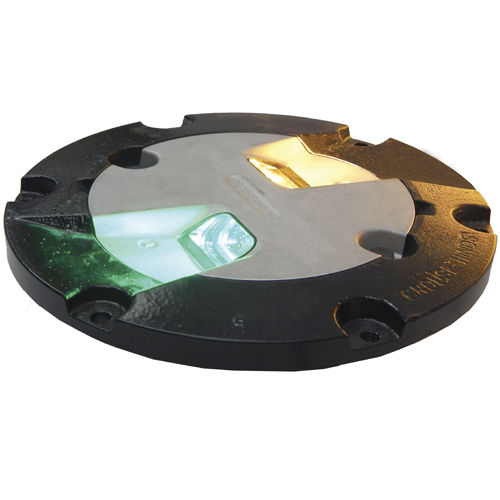

The PRO APF 12/8" L-852 TCL is an 8" taxiway centerline light with or without a support ring. It is used primarily as a ground traffic aid during periods of low visability to guide aircraft between the runway and the parking stand. The TCL is usually a yellow or green bidirectional light. Certifications and compliances FAA AC 150/5345-46 Current Edition FAA EB67 Current Edition NATO STANAG 3316 Design Features ETL certified Wavetrac™ technology reduces power consumption up to 60% compared to incandescent Long life LED technology with rated projected life greater than 50,000h at 6.6 A Dust and watertight to IP68 Modular design makes fixtures easy to maintain with fewer parts to stock Engineering Brief 67 current edition compliant dimming curve Engineering Brief 83A current edition compliant securing fixture to support ring High frequency 400 Hz PWM helps eliminate flicker perception Compatible with all known CCR types 3.5 Crest factor ensures compatibility with Series CCRs 10kV/5kA surge protection -40°C to +85°C operating temperature ensures safe movement of aircraft in the most challenging locations Failure monitoring of fixtures IEC Style 3, 6-13mm low protusion housing Low profile, <.25" (6.35mm) – FAA Style 3 Optional arctic kit
