Thermal aerospace circuit breaker 583 series

manual3-polehigh-performance

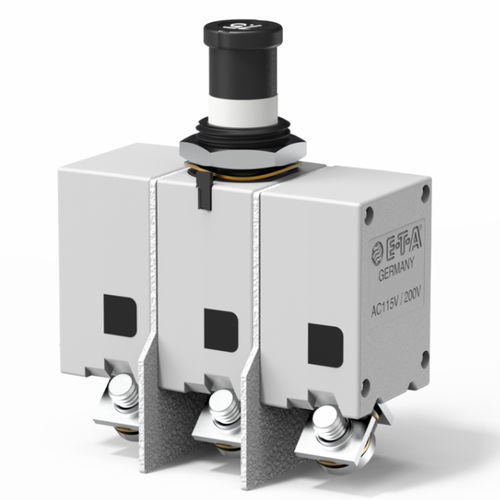

Three pole, miniaturised, aircraft style thermal circuit breaker with tease-free, trip-free, snap action mechanism and push/pull on/off manual actuation (M-type TO CBE to EN 60934). An indicator band on the push button clearly shows the tripped/off position. Threadneck panel mounted, available in metric and US (AS 14154) configurations. Advanced two-chamber design minimises contact contamination to provide fail-safe operation. Temperature compensated with optional auxiliary contacts, and fully approved for use on a wide range of aircraft and equipment. For single pole version see type 483. Mounting method - threadneck Terminal design - screw terminals Actuation - manual release push button Auxiliary contacts - with auxiliary contacts without auxiliary contacts Water splash protection - with water splash protection without water splash protection Illumination - without illumination Typical life - 20,000 operations mechanical 10,000 operations at 1 x IN (<= 25 A) 4,000 operations at 1 x IN (30 A) Certificates - LN 29887, VG 95345 T11, EN 2996, AS 14154, QPL ACCESSORIES Order number - Description - X20080103 - splash cover black with O-ring X20080108 - splash cover transparent with O-ring X20080201 - splash cover black with O-ring, nickel plated nut X20080202 - splash cover black with O-ring, matt black finish nut X20080301 - actuator extension Y30700401-05 - identification collar Y30700501 - lock out ring APPLICATIONS Aerospace
