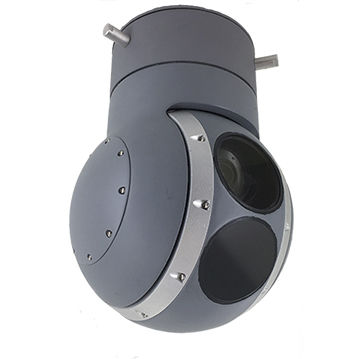

2-axis gyro-stabilized turret OTUS-U135
for dronefor cameras

2-axis gyro-stabilized turret - OTUS-U135 - DST CONTROL - for drone / for cameras
2-axis gyro-stabilized turret - OTUS-U135 - DST CONTROL - for drone / for cameras
2-axis gyro-stabilized turret - OTUS-U135 - DST CONTROL - for drone / for cameras - image - 2
2-axis gyro-stabilized turret - OTUS-U135 - DST CONTROL - for drone / for cameras - image - 3
2-axis gyro-stabilized turret - OTUS-U135 - DST CONTROL - for drone / for cameras - image - 4
2-axis gyro-stabilized turret - OTUS-U135 - DST CONTROL - for drone / for cameras - image - 5
2-axis gyro-stabilized turret - OTUS-U135 - DST CONTROL - for drone / for cameras - image - 6
2-axis gyro-stabilized turret - OTUS-U135 - DST CONTROL - for drone / for cameras - image - 7
2-axis gyro-stabilized turret - OTUS-U135 - DST CONTROL - for drone / for cameras - image - 8
Add to favorites
Compare this product


Characteristics

Number of axes
2-axis
Applications
for drone
Options
for cameras

Description

The OTUS-U135 gyro stabilised micro gimbal provides outstanding performance in one of the smallest form factors available. The two axis gimbal reach a new level of stabilisation performance thanks to purpose-built high-bandwidth torque motors implementing active vibration attenuation. All electronics required for the advanced digital control fits within the unit shell. The user only have to connect an external power supply, a video monitor and a joystick, to have the system up and running. A three dimensional micro-mechanical IMU and a laser range finder mounted directly on the optical bench, allows for advanced features like geo-location and geo-positioning, provided an external heading source is connected to the OTUS-U135. The powerful digital servo controller of the OTUS-U135 is even capable of providing enough computational power to drive optional features like vehicle control and navigation. Gimbal System - Two axis gyro stabilised fully integrated direct drive gimbal De-stabilisation - Down to <100 µrad Feedback Performance - 0.036° ± 0.1° typical encoder resolution/accuracy, 200 Hz update rate Pan/Tilt Range - Infinite range if payload does not require extending snout (sliprings in both axes) Slew Rate - Up to 180 °/sec maximum slew rate Control Interface - 1 x RS485 for user interaction and external heading/position source Video Interface - 1 x composite (PAL or NTSC) and / or 1 x component video (Full HD) or Ethernet Power Requirements - 18 - 36 Vdc, 15 W (typical), 30 W (peak) Temperature - 0 °C to +50 °C operational, -20 °C to 85 °C storage option: -40 °C to +50°C operational Dimensions - 135 mm diameter x 186 mm height Weight - from 1.4 kg (depending on payload)

Catalogs

OTUS-U135
OTUS-U135
4 Pages
