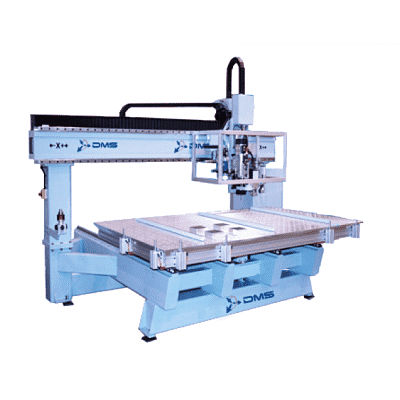

3-axis machining center Arches

verticalfor aeronauticsCNC

This 3-Axis Moving Table CNC machine features a moving table design with moving single or twin tables and single or multiple spindle options. The twin table machine configuration allows pendulum processing between the tables thereby providing the ability to cut on one station while loading in the other. Or conversly, the table can be linked to provide one large work surface. This robust machine is designed for the ultimate rigidity on required strokes up to 12′ long. Common Materials Wood – Composites – Aluminum – Plastics & Acrylics – Foam – Solid Surface materials Common Industries Defense – Military – Aerospace – Automotive – Mold & Pattern Making Average Build Time 10-12 weeks Base Features 3-Axis Moving Table CNC Router Fagor 8065/8070 Controller Rigid Steel Frame Ethernet TCP/IP, USB & Serial Port Connections Drives & Motors: Fagor AC digital drives with closed-loop brushless AC servo motors with absolute encoders on all linear axes Dust Collection – Hood provided and dust delivery collection on top of Z-axis accepts a 5″ dust collection line from customer’s system Ball Screw Drive – Recirculating ball screw assembly on all axes Hiteco Electro Spindle – 16hp / 12 kW Standard 460-480 volts standard 3 phase power (other voltage options available) All Axes Laser Calibrated
