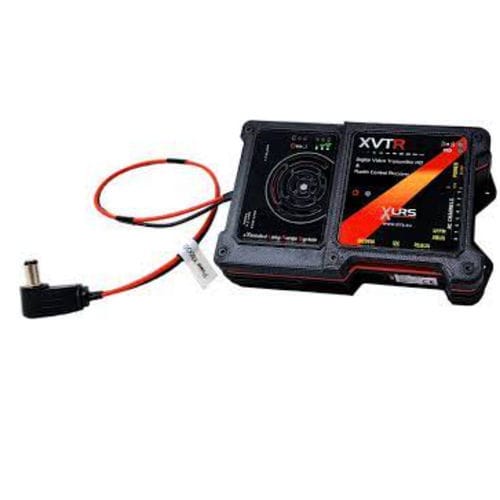

Drone video transmitter XVTR

encrypted

The new XVTR is a powerful Radio Control and Telemetry receiver combined with a latest generation Full HD video transmitter in a single box and already connected internally. To Work up 150Km or more. The XVTR transmitter forms a powerful long-range datalink in conjunction with the XVRE video receiver and optionally with the WMX481 RC transmitter. Booster: To get long range, XVTR needs XBOOST24G8W. Encryption: 128-bit AES to prevent transmitter spoofing or unauthorized drone takeover. FHSS Frequency Hopping: Frequency hopping spread spectrum allows multiple channels to interfere and the system remains immune.FHSS synchronization recovery: <300ms. The pseudorandom hopping sequence is encrypted with a 10-digit user code. Ready for LTE and SATCOM: The receiver is prepared to work simultaneously in the selected RF band (313 to 950Mhz) and with LTE4G or SATCOM modules. Advanced Mixer in RC Receiver An advanced RC mixer for professional systems. The mixes in the xlrs systems are not in the transmitter but in the vehicle part (receiver and servo extenders). It is different from hobby RC receivers and has many advantages. Security and error-free. By having the mixes in the receiver there is no possibility of error selecting the different UAV drone models in the transmitter. It is used to exchange pilots on the fly, with several base stations or portables. Allows the use of several transmitters with several UAVs without the need to select the model. The RC transmitter on the ground transmits RAW data (flat, without mixing), so all transmitters are compatible by always transmitting the same data format.
