Drone video receiver XVHD-SAT

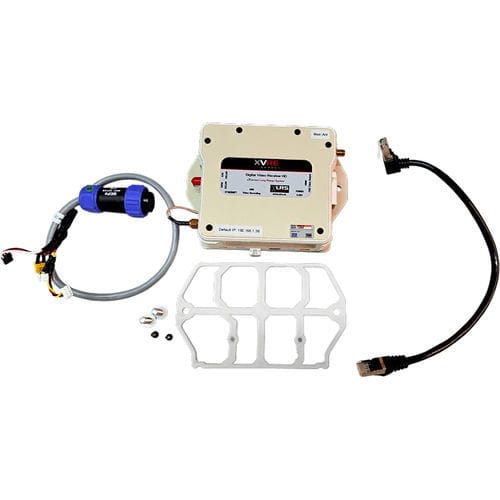

Data link with Full HD Video System for SATPRO Long Range up to 150Km (LOS) Full HD long-range professional video up to 150Km. Specifically designed for the SATPRO tracker antenna. Prepared for all types of vehicles: UAV, Drone, Helicopter, Cars, Boats, Robots, etc. It can be used without the tracker antenna, to achieve maximum range you will need a directional antenna of 24dBi or more and due to the narrow focus angle it is preferable to use a tracker antenna. Prepared to mount and wire directly to the SATPRO. Supplied with the necessary cables and accessories. If purchased together with the SATPRO, it comes already assembled and in the SATPRO suitcase, ready for use. Compatible with XVTR and XBOOST24G8W transmitter. Frequency: 2.4Ghz, fixed or with FHSS. Maximum power: 8W. Modulation: ODFM H264/H265 codec. With HDMI, HDMI Wireless or Ethernet interface. You can use it with a 18dBi patch antenna or a 24dBi parabolic antenna. With a maximum power of 8W and a 5dBi omnidirectional antenna and the ground configuration of the XVRE receiver together with a 24dBi directional antenna in the SATPRO, it can reach HD video up to 150Km in optimal conditions (LOS). XVTR can include an independent long-range RC (radio control and telemetry) receiver up to 250Km, in the 433, 868 or 915Mhz bands. Depending on the case, an external RXLRS receiver can also be used. The video transmitter can also be used for telemetry, depending on the case, it can reduce the cost.
