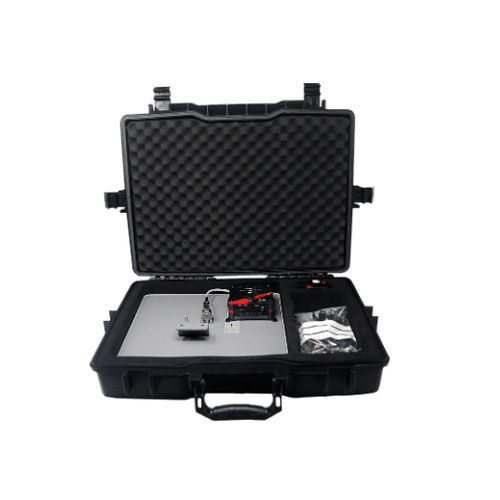

Drone video receiver XVID3V2

FPV Analog Video System. PAL. Diversity video receiver RXVID3V2 and video transmistter XOSD3B. Professional analog video system prepared for all types of applications FPV to work between 25-40Km (LOS) with antennas included in the kit or 100km if you use high gain parabolic antennas. Diversity video receiver 1.2, 2.4 or 5.8Ghz It has two internal individual video receiver modules that work in diversity mode. Depending on the XVID3V2 video system you have selected you can have the two recevier modules working on the same frequency or each receiver modeule on a different frequency, in this way you can have the RXVID3V2 receiver working on twok different frequencies to obtain a redundant video system.. The RXVID3V2 video receiver can work in different modes: Diversity, Manual RX1 or Manual RX2. The diversity mode is automatic, the RXVID3D V3 has two antenna inputs and internally it will select the receiver module with the best received video signal. By default the receiver module (No.1) has the directional antenna connected for long range and the receiver module (No.2) has the omnidirectional antenna connected for short range, in this way you will get a good combination of antennas and good video signal for short and long range. Manual modes, when selected (Manual RX1 or Manual RX2) at this time only one video receiver module will work. It includes an Audio / Video output through a mini jack connector to connect the video by cable to a standard screen through the RCA connector or by HDMI (Using an adapter). A 3.5mm Mini Jack to RCA cable is included in the XVID3V2 kit.
