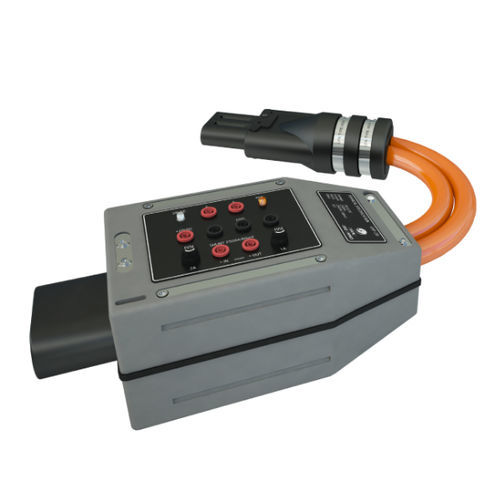

Rectangular plug GAP-028

maleplasticmeasurement

FIRST EVER PRODUCED SPECIFICAUY DESIGNED MEASURING DEVICE, DIRECTLY PLUGGED BETWEEN GPU & AIRCRAFT (CONSUMPTION SOURCE) VOLTAGE [V] - 115 / 200 V AC ± 10 % POWER [kVA] - 90 kVA ±10% Device indicated accuracy class factor Isolated plug test pins for external voltage measurement on E&F circuit + / - 0.5 28.5 VDC Isolated plug test pins for external voltage 115V/ 400 Hz / frequency measurement on / between A, B, C / N phases Isolated plug test pins for external current 3 x 350 A / 5 A measurement on CT-A, CT-B, CT-C phases (k,l) Light phase presence indicator Presence of A, B, C phases Light phase rotation indicator Left or Right Light E&F presence indicator Presence of E/F
