3,600psi @ 6GPM (248bar @ 22.7LPM) / Giant Pump
High pressure cleaning wand with 25 ft of hose
Instantaneous water recovery for a clean surface ready to use in minutes
Automatic lift gate for easy loading and unloading of the CY210
On board multi-filtration system cleans and recycles recovered waste water — extending run time and further reducing water consumption
Water Capacity
550gal. (2081.9 L) Combination
Wastewater Recovery Tank
Fiberglass with Patented Internal Separation Baffles Easy Clean Out Tanks with Top Cap Access and 3 in (0.08 m) drains
Filtration
(2) 75micron and (2) 30micron / Stainless Steel, Fully cleanable and Reusable
Pressure Pump
3,600psi @ 6GPM (248bar @ 22.7LPM) / Giant Pump
Power Source
Base Chassis Power Take Off
Fuel Tanks
Gasoline / Diesel
Run Time
Up to 6 Hours (Application-Dependent)
Pressure Lance -
Standard 36″ Length
Pressure Hose -
100ft. (15.24 m) Standard for Both Supply and Recovery / Optional lengths available
Heater -
Diesel-Fired Burner Standard for Water Heated up to 160oF (71oC)
Chassis -

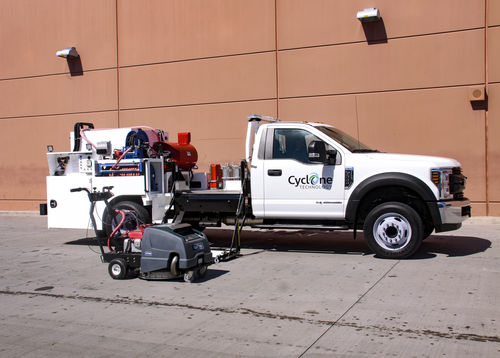

Third Party Chassis Available (Ford F-450 Shown in picture)
– Dimensions (L x W x H) -
23ft L X 7ft 8in W X 7ft 6in H (7 m L x 2.33 m W x 2.28 m H)
– Walk-Behind Loading System -
Side Mounted Liftgate with Winch System
Weight -
– Full of Water with CY210 - 18,000 lbs. (7,937 kg)
– Empty with CY210 - 13,300 lbs. (6,032 kg)
