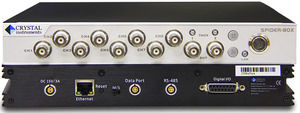

Vibration testing machine Spider-80X

materialfor the aerospace industry

High Channel Count Vibration Test ControlThe Spider-80X vibration test controllers have voltage and IEPE inputs which are ideal for shock, vibration and acoustic measurement or general purpose voltage measurement. Each Spider-80X vibration controller is equipped with 8 input channels which accurately measure and record both dynamic and static signals. The mass flash memory records 8 channels of streaming signals simultaneously up to 102.4 kHz while simultaneously computing real-time time and frequency based functions. An embedded signal source channel provides various signal output waveforms that are synchronized with the input sampling rate.High Dynamic RangeThe Spider’s performance is the best in class with the highest dynamic range of any similar product. With patented technology, the Spider-80X achieves 150 dBFS input dynamic range (defined in the time domain). Each measurement channel detects signals as small as 6 μV and as large as ±20 V. Such high dynamic range eliminates the need for input range and or gain settings of traditional data acquisition systems.A high speed floating point DSP manages the data input/output and real-time processing. The Spider-80X is also configured with RAM and onboard flash memory for mass data storage. Special thermal and low power designs eliminate the need for a cooling fan.
