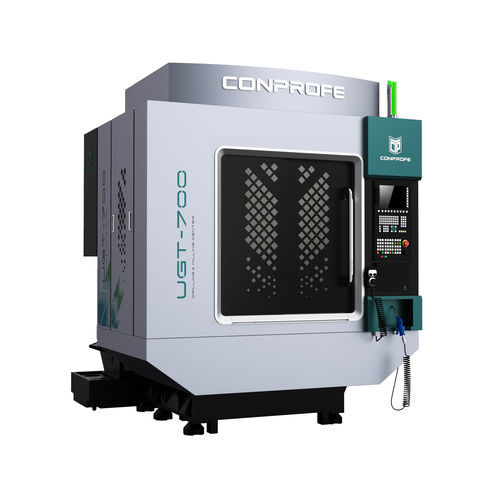

3-axis machining center UGT-700

verticalfor aeronauticsCNC

Suitable for machining precision parts made of hard-brittle materials (e.g. ceramic, sapphire, glass, silicon carbite etc.), carbon-fiber composites, superalloy (e.g. titanium alloy) and other hard-to-cut materials Conprofe independently-developed Ultrasonic Machining System to solve issues in machining hard-to-cut materials Optional Supercritical CO₂ or MQL Cooling System to realize clean machining Three options for screw guides available to meet various machining requirements on hard-brittle materials and metal Coolant-through BBT-30 Ultrasonic Spindle with max speed of 30,000rpm available Various Tool Holding Capacity of tool magazine: 21T/26T/30T/36T/30T+14T Positioning accuracy of 5μm and repeatability of 3μm Spindle Nose to Table - mm - 180-500 Spindle Center to Z-Axis Cover - mm - 410 Worktable Dimensions - mm - 800×400 Max. Load - kg - 250 T-Slot (No. x Width x Distance) - pcs x mm x mm - 3x14x125 Spindle Diameter - mm - Φ100 Motor Power (Rated) - kW - 2.2/3.7 Motor Torque (Rated) - Nm - 7/17.7 Spindle Taper - – - BT30 Ultrasonic - – - Optional Minimum Quantity Lubrication (MQL) - – - Optional Ultrasonic + MQL - – - Standard Supercritical CO2 Spindle - – - Optional (Add-on
