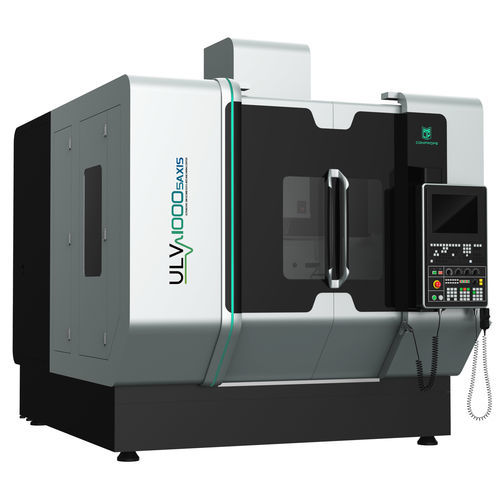

5-axis machining center ULV1000

verticalfor aeronauticsCNC

Suitable for machining precision parts made of hard-brittle materials (e.g. ceramic, sapphire, glass, silicon carbite etc.), carbon-fiber composites, superalloy (e.g. titanium alloy) and other hard-to-cut materials Conprofe independently-developed Ultrasonic Spindle to solve challenges in machining hard-to-cut materials Optional Supercritical CO₂ or MQL Cooling System to realize clean machining Bridge gantry structure featuring tilting 5-axis, low gravity center, short overhang, super-strong rigidity and less thermal strain Multiple options of chain type tool magazines with Tool Holding Capacity of 24-120T With high power, high torque and high-speed ultrasonic spindle Optional automatic suppression system to mitigate risks in machining, e.g. burning and explosion With SIEMENS 840Dsl or SIMUERIK ONE 5-Axis simultaneous machining CNC system Spindle Nose to Table - mm - ±100/360 Worktable Dimensions - mm - Φ1,000 Max. Load - kg - 1,000 T-Slot (No. x Width) - pcs x mm - 8-18H8 Max. Workpiece Size - mm - Φ1,000×550 Spindle Diameter - mm - Φ210 Motor Power - kW - 26 Motor Torque - Nm - 161 Spindle Taper - – - HSK-A100 Ultrasonic - – - Standard Minimum Quantity Lubrication (MQL) - – - / Ultrasonic + MQL - – - /
