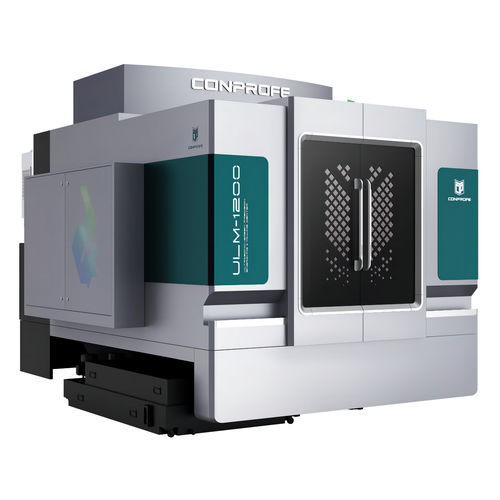

3-axis machining center ULM-1200C

verticalfor aeronauticsCNC

Suitable for machining precision parts made of hard-brittle materials (e.g. ceramic, sapphire, glass, silicon carbite etc.), carbon-fiber composites, superalloy (e.g. titanium alloy) and other hard-to-cut materials Conprofe independently-developed Ultrasonic Machining System to solve issues in machining hard-to-cut materials Optional Supercritical CO₂ or MQL Cooling System to realize clean machining Two options for screw guides to meet requirements on machining hard-brittle materials and metal Front-door loading & unloading and side-door operation available with facilitative operating position High-precision machining with up to 3μm of positioning accuracy and 2μm of repeatability Single/double/T40 chain-type tool magazine available With chip auger for smooth and thorough chip removal Spindle Nose to Table - mm - 145-495 Worktable Dimensions - mm - 850×1250 Max. Load - kg - 1000 T-Slot (No. x Width x Distance) - pcs x mm x mm - 8x18x100 Spindle Diameter - mm - Φ150 Motor Power (Rated) - kW - Y: 15 △: 20 Motor Torque (Rated) - Nm - Y: 39.6 △: 24.8 Spindle Taper - – - HSK-A63 Ultrasonic - – - Optional Minimum Quantity Lubrication (MQL) - – - / Ultrasonic + MQL - – - / Supercritical CO2 Spindle - – - /
