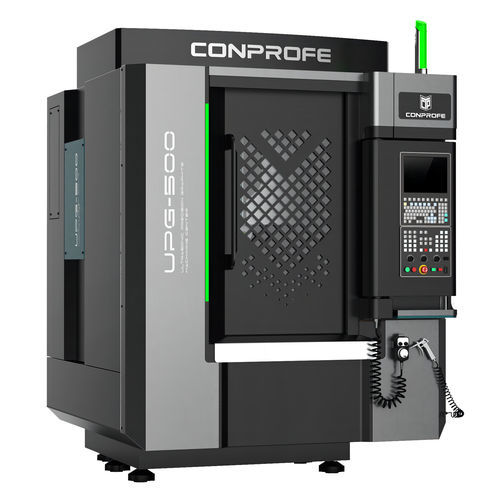

3-axis machining center UPG-500

verticalfor graphiteCNC

Suitable for machining precision parts made of hard-brittle materials (e.g. ceramic, sapphire, glass, silicon carbite etc.), carbon-fiber composites, superalloy (e.g. titanium alloy) and other hard-to-cut materials Conprofe independently-developed intelligent Ultrasonic Machining System to readily solve issues in machining hard-to-cut materials Optional Supercritical CO₂ or MQL Cooling System to realize clean machining Two options for screw guides to meet machining requirements on hard-brittle materials and metal Front-door loading & unloading and side-door operation available with facilitative operator position High-precision machining with up to 3μm of positioning accuracy and 2μm of repeatability Single/Extended/T40 chain-type tool magazines available With chip auger for smooth and thorough chip removal Spindle Nose to Table - mm - 165-395 Worktable Dimensions - mm - 500×400 Max. Load - kg - 200 T-Slot (No. x Width x Distance) - pcs x mm x mm - 4x12x100 Spindle Diameter - mm - Φ120 Motor Power (Rated) - kW - 7.5 Motor Torque (Rated) - Nm - 3.4 Spindle Taper - – - HSK-E40 Ultrasonic - – - Optional Feed Rate
