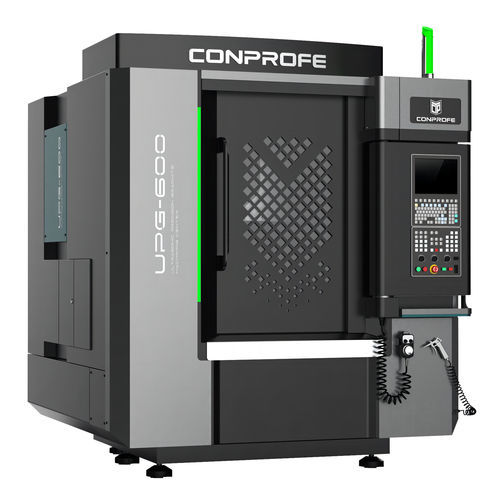

3-axis machining center UPG-600

verticalfor graphiteCNC

Suitable for machining precision parts made of hard-brittle materials (e.g. ceramic, sapphire, glass, silicon carbite etc.), carbon-fiber composites, superalloy (e.g. titanium alloy) and other hard-to-cut materials Conprofe independently-developed intelligent Ultrasonic Machining System to readily solve issues in machining hard-to-cut materials Optional Supercritical CO₂ or MQL Cooling System to realize clean machining Two options for screw guides to meet machining requirements on hard-brittle materials and metal Front-door loading & unloading and side-door operation available with facilitative operator position High-precision machining with up to 3μm of positioning accuracy and 2μm of repeatability Single/Extended/T40 chain-type tool magazines available With chip auger for smooth and thorough chip removal Spindle Nose to Table - mm - 150-400 Worktable Dimensions - mm - 620×560 Max. Load - kg - 200 T-Slot (No. x Width x Distance) - pcs x mm x mm - 7x12x80 Spindle Diameter - mm - Φ150 Motor Power (Rated) - kW - Y: 15 △: 20 Motor Torque (Rated) - Nm - Y: 39.6 △: 24.8 Spindle Taper - – - HSK-A63 Ultrasonic - – - Optional Feed Rate
