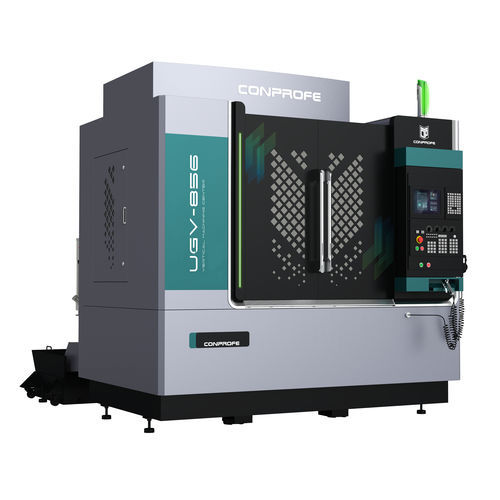

3-axis machining center UGV-856

verticalfor aeronauticsCNC

Suitable for machining precision parts made of hard-brittle materials (e.g. ceramic, sapphire, glass, silicon carbite etc.), carbon-fiber composites, superalloy (e.g. titanium alloy) and other hard-to-cut materials Conprofe independently-developed intelligent Ultrasonic Machining System to readily solve issues in machining hard-to-cut materials Optional Supercritical CO₂ or MQL Cooling System to realize clean machining Two options for screw guides to meet requirements on machining hard-brittle materials and metal With high-precision linear encoders realizing fully-enclosed control Options of Fanuc, Mitsubishi, Siemens and HNC system available With an optional automatic fire suppression system Spindle Nose to Table - mm - 130-730 Spindle Center to Column Guide - mm - 575 Worktable Dimensions - mm - 1000x500 Max. Load - kg - 450 T-Slot (No. x Width x Distance) - pcs x mm x mm - 4x18x124 Spindle Diameter - mm - Φ140 - Φ150 Motor Power (Rated / Short-Duration) - kW - 5.5/7.5 - 5.5/7.5 Motor Torque (Rated / Short-Duration) - Nm - 35/47.7 - 35/47.7 Spindle Taper - – - BT40 - BT40 Ultrasonic - – - Optional - Optional Minimum Quantity Lubrication (MQL) - – - Optional - Optional Ultrasonic + MQL - – - Optional - Optional
