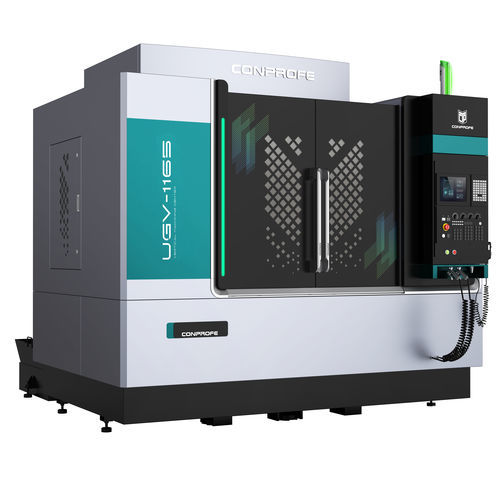

3-axis machining center UGV-1165

verticalfor aeronauticsCNC

Suitable for machining precision parts made of hard-brittle materials (e.g. ceramic, sapphire, glass, silicon carbite etc.), carbon-fiber composites, superalloy (e.g. titanium alloy) and other hard-to-cut materials Conprofe independently-developed intelligent Ultrasonic Machining System to readily solve issues in machining hard-to-cut materials Optional Supercritical CO₂ or MQL Cooling System to realize clean machining Two options for screw guides to meet requirements on machining hard-brittle materials and metal With high-precision linear encoders realizing fully-enclosed control Options of Fanuc, Mitsubishi, Siemens and HNC system available With an optional automatic fire suppression system Spindle Nose to Table - mm - 140-740 Spindle Center to Column Guide - mm - 710 Worktable Dimensions - mm - 1200×600 Max. Load - kg - 800 T-Slot (No. x Width x Distance) - pcs x mm x mm - 5x18x100 Spindle Diameter - mm - Φ150 (Optional) - Φ150 (Optional) - Φ150 (Optional) Motor Power (Rated / Short-Duration) - kW - 7.5/11 - 9/11 - Y:6/7.5 △: 11/13.75 Motor Torque (Rated / Short-Duration) - Nm - 35.8/70 - 57.3/70 - Y: 32.5/42.9 △: 18.8/24.2
