5-axis machining center VentorPower verticalfor the aerospace industryCNC
Add to favorites
Compare this product
Characteristics
- Number of axes
- 5-axis
- Spindle orientation
- vertical
- Applications
- for the aerospace industry
- Other characteristics
- CNC
- Rotational speed
Max.: 18,000 rpm
(113,097 rad.min-1)Min.: 5,000 rpm
(31,416 rad.min-1)- X travel
Max.: 40,000 mm
(1,574.8 in)Min.: 6,000 mm
(236.22 in)- Y travel
Max.: 5,000 mm
(196.85 in)Min.: 3,800 mm
(149.61 in)- Z travel
Max.: 2,000 mm
(78.74 in)Min.: 1,500 mm
(59.06 in)
Description

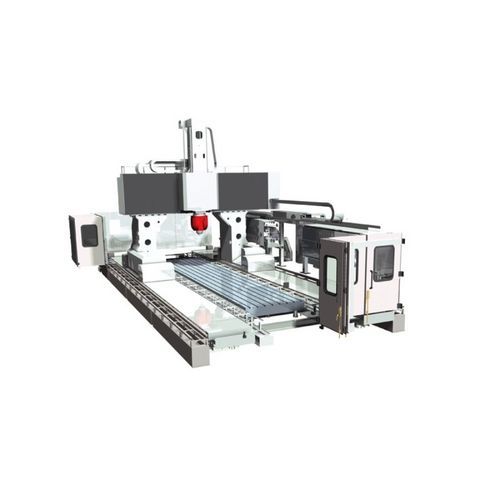

VentorPower is a 5-axis machining centre, portal type with mobile bridge and fixed table, equipped with advanced technological solutions capable to reach outstanding performances.
The axes movements are on roller guides and screws rectified to double spiral preloaded, the positioning accuracy of the axes is detected by optical lines, the RAM is “box in box“ type. Available also a “Cross Mobile” version with Z1 Racing (RAM) up to 1800 mm and Z2 (bar) up to 4000 mm .
Can be mounted both heads with 5 axes with continuous interpolation or “Index” type, additional option the «automatic head change» system.
VentorPower is a machining centre for steel, cast iron, titanium and aluminum, suitable for industrial sectors such as Mechanical Fabrication.
