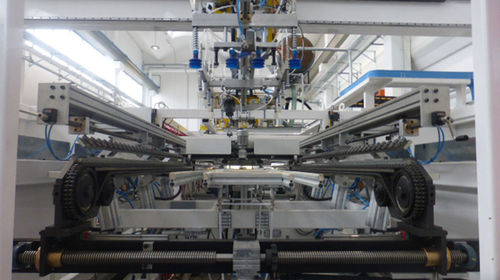

Automatic forming machine HEDL

for compositesfor aeronautics

The thermoforming machine type HEDL is suitable to work plastic material in reel or in sheets (ABS / HIPS) with thickness from 0,8 mm to 2 mm. and is designed for inner doors of domestic refrigerators production. The coil supply ensures a very high productivity, while a range of options make the machine particularly fast in the mould changeover and set-up: the peculiarity of the machine is due to the opportunity to cut directly into the forming station. LOADING from reel to reach a very high productivity, or sheet HEATING - single top panel at 3 steps (reel) or 2 sandwich panels (Sheet) - IR ceramic, quartz, or fl ash black heating elements FORMING - Forming by vacuum in the mould, with ballooning through a bell integrated in the mould - Compressed air at 2/5 bar inside the bell, to support vacuum - positive or negative moulds CUTTING - perimetal cut by guillotine or punching presses - chip cutting system at exit station HIPS - 9,0 mm – 0,354 inch - Fino a 320 p/h ABS - 9,0 mm – 0,354 inch - Fino a 320 p/h STANDARD DIMENSIONS 2000 x 900 x 200* mm | 78,7 x 35,4 x 7,8* inch 2200 x 1000 x 200* mm | 86,6 x 39,3 x 7,8* inch
