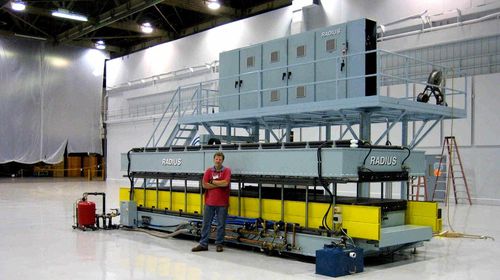

Electric press

assemblyfor aeronauticsvertical

Electrical Heating Capacity to heat a 300mm height aluminum tool @ 1,75°C/min Uniform Pneumatic-pressure 4200x1300 mm² 630 Tons available = 12 bars pneumatic closing pressure (from 15 bar utility). Flexible Assy of multiple pressesNo reinforced floor nor foundation are needed. • Illustrating the modularity of our press concept, the 630 Tons press is an assembly of a 270 Tons press module and a 360 Tons module • Welded upper steel bolster construction • The clamping area is 4,2m x 1,3m. The maximum bolster deflection is less than 0,125mm (11 bars) • Electric bolster actuation using (14) electric screw jacks. Daylight from 25mm to 600mm • Heating platens are flat and parallel to less than 0,125mm • 5 metric tons wheeled tool loading / unloading cart with pneumatic docking to the press
