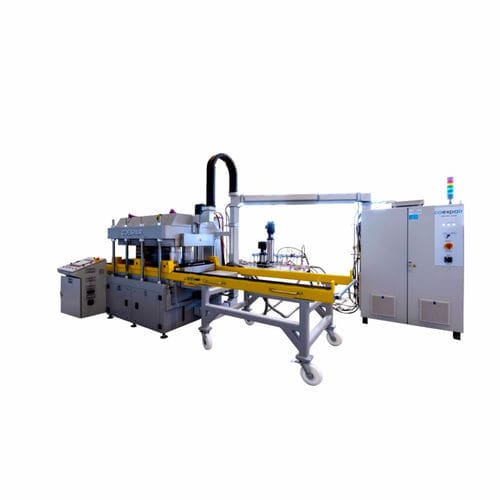

Electric press

formingfor aeronauticsvertical

Electrical Heating 64 kW Oil-free heating system Up to 220°C 4 x 18kW heating zones controlled by PID Uniform Pneumatic-pressure 1500x650 mm² 195 Tons available = 20 bars pneumatic closing pressure (from 25 bar utility). Fast Mold Cooling Platens with integrated water cooling circuit Water / Air chiller Oil-free cooling • Typically used for production where compacity and short cycle time is needed • Monoblock upper steel bolster construction • The clamping area is 1,5m x 0,65m. • Available with Mater™ which allows more automated injection with Coexpair Injection system. • Manual Tool loading / unloading station that includes an external 1,75m rail system
