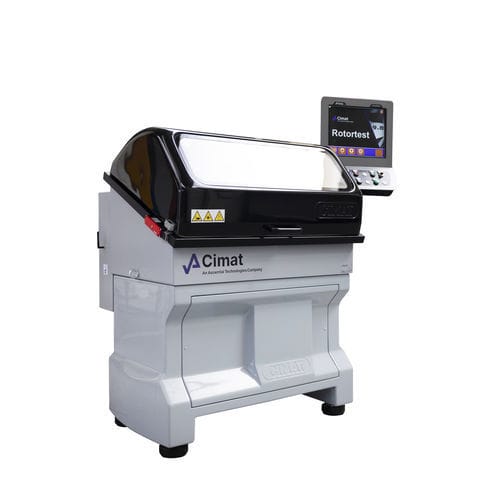

Horizontal balancing machine CMT-15H2BS

manualfor aeronautics

In addition to conventional horizontal balancing machines on a bed, we offer compact balancing machines, which correspond to ergonomic requirements of a customer. Balancers for Water Meters is one of CIMAT compact balancing machines. The greatest advantage of compact balancing machines is the possibility of easy placement—embedded vibration insulators do not require foundations. As such, our compact machines occupy a small area in comparison to conventional balancing machines on a bed. This is made possible by a guard coupled with the balancing machine body—these guards do not occupy additional square meters of area. In spite of their small dimensions, these compact balancing machines have a robust body with silica sand filling to dampen vibration. As a result, our machines are capable of very accurate measurements and they are less sensitive to outside disturbances. Main features Using an appropriate machine design and a suitable safety guarding machines, Permanent calibration and rotor specific calibration, Pedestals with integrated pins and V-blocks, Latest measuring and control unit ROTORTEST, Mass correction types: milling, drilling, grinding, punching, welding, adding balancing weights etc., Safety standards ISO 21940-23:2012 (old ISO 7475 and DIN 45690) compliant. Maximum weight for symmetrical rotor - 15 kg - 30 kg Maximum rotor diameter - 200 / 390 mm - 700 mm ISO 2953 Reduction Ratio - 98% - 98% Accuracy – MU 60 runs @ 95% 2 standard deviations - 0,1 - 0,15 Journal range - 5-25 mm - 10-140 mm Working height approx. - 1100 mm - 1200 mm Voltage & phase. All 50-60Hz - 110 or 240v 1ph - 220 or 400V 3 ph
