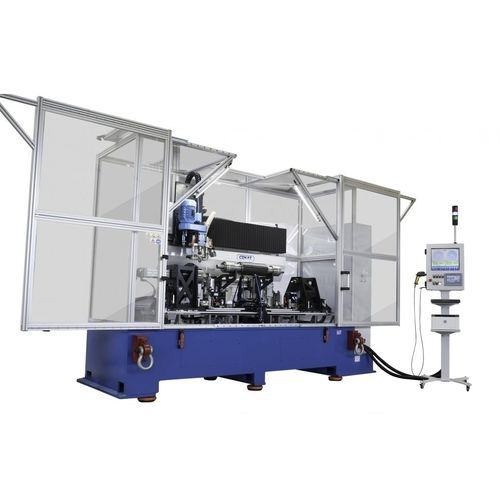

Horizontal balancing machine CMT-5

electricfor aeronautics

At CIMAT, we offer conventional horizontal balancing machines on a bed for electric armatures of various sizes. The greatest advantage of our balancing machines is the versatile application. Main features: universally applicable, custom design for every customer, permanent calibration and rotor specific calibration as standard, intuitive and easy to operate software, latest measuring and control unit ROTORTEST based on microprocessor technology, different correction methods are supported: milling, drilling, grinding, punching, welding, adding balancing weights, safety guarding standard ISO 21940-23:2012 (old ISO 7475 and DIN 45690) compliant and others. Maximum weight for symmetrical rotor - 5kg - 10kg - 50kg - 130kg - 300kg - 700kg - 1000kg - 3000kg - 5000kg - 8000kg - 10000kg - 20000kg Maximum rotor diameter - 190 / 370 mm - 200 / 390 mm - 1200 / 1600 mm - 1200 / 1600 mm - 1250 / 1700 mm - 1250 / 1700 mm - 1080 / 1700 mm - 1150 / 1800 mm - 1380 / 1980 mm - 2200mm - 2200mm - 2200mm ISO 2953 Reduction Ratio - 98% - 98% - 98% - 98% - 98% - 98% - 98% - 98% - 98% - 98% - 98% - 98% Accuracy – MU 60 runs @ 95% 2 standard deviations - 0,05 - 0,1 - 0,5 - 1 - 2 - 2 - 3 - 7 - 15 - 15 - 25 - 35 Journal range - 4-40mm - 5-25mm - 10-140mm - 10-140mm - 15-220mm - 15-220mm - 15-220mm - 20-250mm - 20-280mm - 25-380mm - 25-380mm - 40-420mm Working height approx. - 1130mm - 1110mm - 1110mm - 1110mm - 1120mm - 1120mm - 1120mm - 1170mm - 1325mm - 1445mm - 1445mm - 1570mm
