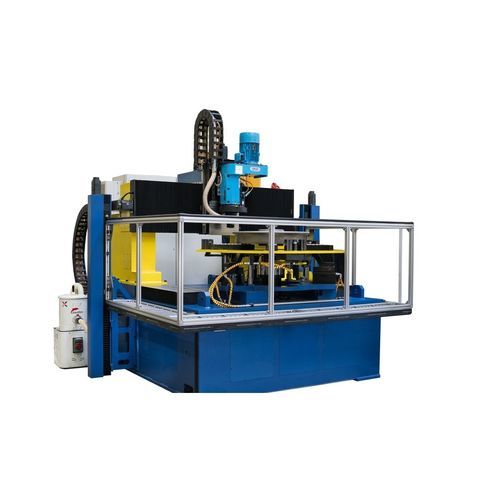

Vertical balancing machine CMT-750 FW

manualfor aeronauticsautomatic

For the balancing of rail vehicle wheels, Cimat offers universal machines that measure the unbalance, as well as combined solutions where unbalance measurement and correction is integrated in one station. Balancing Machines for Rail Vehicles The balancing machines from Cimat are designed according to customer-specific requirements. We can provide machines that solely measure unbalance or combination systems that include a specially developed milling unit. In order to limit installation restrictions as much as possible, Cimat’s balancing machines are for single components like: railroad wheels, brake disks ring gears Semi-automatic Train Wheel Balancing Machine 3-jaw chuck for wheel gripping Supports rail wheel and gear wheel Automatic 3-axis milling system with chip vacuum Automatic guarding Adapted to robot integration Chip vacuum Fast measurement run High measuring accuracy Number of correction planes - 1 Correction type - Milling with a chip vacuum Wheel clamping system for outer diameter while milling - Hydraulic Wheel bore diameter gripping range - 140 mm – 260 mm Maximum milling depth - 4 mm for axis X 55 mm for axis Z Maximum milling angle - 1200 ISO 2953 Reduction Ratio single plane - 95% or more Cycle time excluding wheel load and unload - No more than 300 seconds Power supply - 380V +/-10%, 50 Hz, 3ph or other Power consumption - ~ 30 kW Required air pressure - 0.6 Mpa WHEEL Maximum part weight - 750 kg Maximum part diameter - 700 mm – 1.400 mm Maximum height of wheel’s hub - 250 mm DIMENSIONS Measuring unit - 600 mm x 600 mm x 1730 mm Machine - ~ 3.500mm x 4.300mm x 3.300mm Weight - ~ 13T
