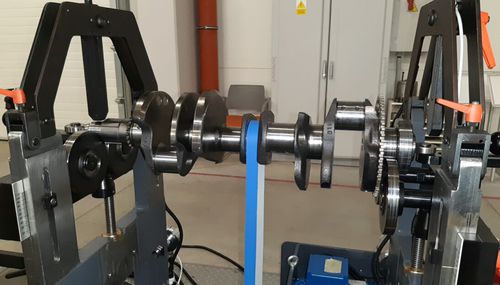

Horizontal balancing machine CMT-700 H2K

manualfor aeronautics

At CIMAT, we produce and supply special balancers for crankshafts of all kinds. Balancing Machines for Crankshafts: High accuracy and efficiency are guaranteed thanks to special software that distributes unbalance to different counterweights for drilling. On-site drilling station that can travel in different directions and provides fast and easy mass correction. Custom balancers are available upon request. Balancing reports can be saved as a PDF, CSV or XLS and can be sent to a built-in printer or to an ERP system—summary reports can also be created on request Safety guarding standard ISO 21940-23:2012 (old ISO 7475 and DIN 45690) compliant. Permanent calibration and rotor specific calibration as standard Latest measuring and control unit ROTORTEST based on microprocessor technology Weight capacity of a rotor - 7 – 700 [kg] Hard-bearing (permanent) and rotor specific calibration - Included Max. diameter of a rotor above bed - 1700 [mm] Max. diameter of the rotor above belt drive - 1250 [mm] Special on-site high performance driller - Included Drive motor - AC motor with inverter Safety guarding and CE label - Included Weight of the machine - around 1500 [kg] Unbalance calculation software - Included
