Horizontal balancing machine CM series

manualfor aeronauticsautomatic

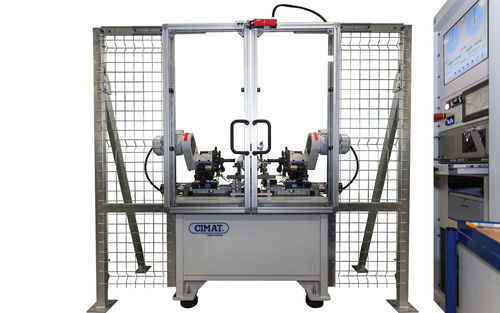

At CIMAT, we produce and supply a number of different balancers for alternators. We offer a variety of balancers based on the weight and dimensions of components and on the way a particular machine is operated. Automatic Balancing Machines for Alternators Machinery Directive 2006/42/EC compliant Custom balancers and adapters are available Shortest delivery time Multiple station balancers are available Newest measuring and control unit ROTORTEST No component marking for speed measuring NC mass correction: milling, drilling, grinding, punching, welding, adding balancing weights etc. Machine-loading is available Safety standards ISO 21940-23:2012 (old ISO 7475 and DIN 45690) compliant Maximum weight of a component - 25 kg - 25 kg Minimum weight of a component - 1 kg - 1 kg Maximum diameter of the component - 300 mm - 300 mm Maximum distance between bearing center lines - 440 mm - 440 mm Required air pressure - N/A - 0,6 MPa On-station correction - N/A - Drilling and Milling
