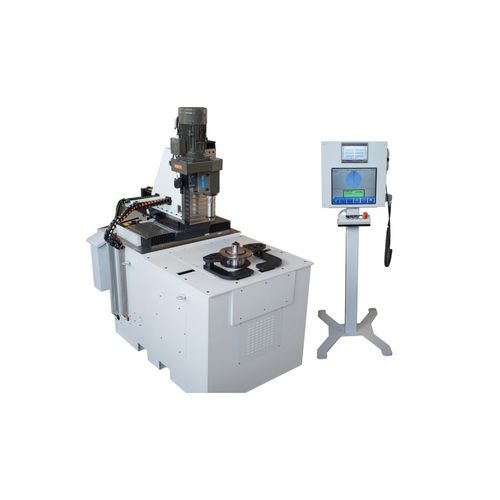

Vertical balancing machine CMT series

manualfor aeronauticsautomatic

At CIMAT, we produce and supply special automatic balancing machines for brake discs and drums. Automated Balancing Machines for Brake Discs and Drums: Machinery Directive 2006/42/EC compliant Custom balancers and adapters are available Shortest delivery time Multiple station balancers are available Newest measuring and control unit ROTORTEST No component marking for speed measuring NC mass correction: milling, drilling, grinding, punching, welding, adding balancing weights etc. Machine-loading is available Safety standards ISO 21940-23:2012 (old ISO 7475 and DIN 45690) compliant Number of drilling or milling tools - 1 - 1 - 1 Number of measuring planes - 1 or 2 - 1 or 2 - 1 or 2 Tool orientation - Axial - Axial - Axial Positional control - Servo - Servo - Servo Maximum component weight - 15 kg - 30 kg - 50 kg Maximum rotor height - 250 mm - 250 mm - 250 mm Maximum correction radius - 150 mm - 150 mm - 150 mm ISO 2953 Reduction Ratio - 98% - 98% - 98% Voltage & phase - 380-480v 3 phase - 380-480v 3 phase - 380-480v 3 phase
