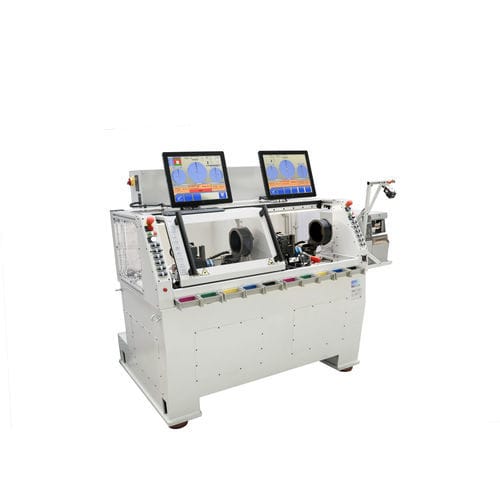

Vertical balancing machine CMT series

manualfor aeronauticsautomatic

At CIMAT, we produce and supply special automatic balancing machines for assemblies of ECFA and HVAC blowers and their components. Balancing Machines for ECFA and HVAC Blowers: Machinery Directive 2006/42/EC compliant Custom balancers are available Shortest delivery time Multiple station balancers are available Newest measuring and control unit ROTORTEST Balancing reports are saved as a PDF, CSV or XLS, printed on a built-in printer or sent to an ERP system Safety norms ISO 21940-23:2012 (old ISO 7475 and DIN 45690) compliant CIMAT’s software converts amount of unbalance into predefined special balancing clips, which have to be placed on a blade according to the on-screen information Power supply connectors are connected to the motor of the fan automatically Maximum component weight - 0,05 – 2 kg - 1 kg - 5 kg - 5 kg - 5 kg Maximum rotor height - 350 mm - 100 mm - 150 mm - 150 mm - 150 mm Maximum correction radius - 400 mm - 150 mm - 400 mm - 400 mm - 400 mm ISO 2953 Reduction Ratio - 98% - 98% - 98% - 98% - 98% Voltage & phase - 380-480v 3 phase - 380-480v 3 phase - 380-480v 3 phase - 380-480v 3 phase - 380-480v 3 phase
