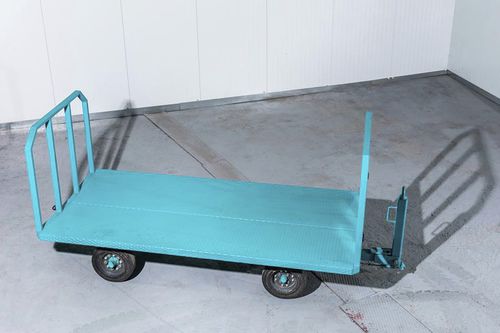

This equipment usually goes in a convoy of 5 units loaded and 6 units empty, and its function is to transport luggage from the plane to the logistics warehouse or vice versa.
They are equipped with a strap on both sides, to hold the suitcases and prevent them from falling during the journey. The wheels are solid superelastic.
They have a security system so that the operators cannot invade the space between the convoys.
• Loading platform.
Overall length: 2,735mm.
Length between stops: 2,495 mm.
Overall width: 1,600/1,300 mm.
Floor to floor height of the platform: 540 mm.
• Other data.
Extended tiller total length: 4,100 mm.
Retracted drawbar total length: 3,380 mm.
Total width: 1,600 mm.
Wheelbase: 1,500 mm.
Track width, front and rear: 1,000 mm.
Maximum speed towed 15 km/h
Weight (Tare): 435 kg.
