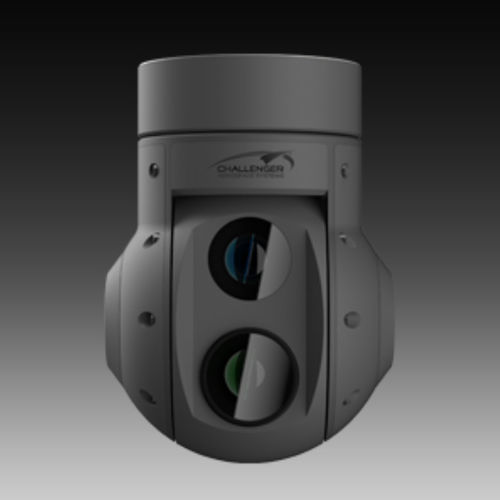

2-axis gimbal EXSS -135

for dronewith zoomwith camera

Gimbal System with IR Uncooled Imager and Daylight Camera with 10x Optical Zoom Gimbal system 2 axis gimbal with high bandwidth direct torque drive Daylight video camera * PANASONIC GP-MH310 Daylight camera field of view horizontal – 50.6° to 5.5°vertical – 29.3° to 3.1° Minimum illumination 2.0 lx (color), 0.1 lx (B/W) Infrared imager core * TC 640, uncooled module with shutter Infrared imager lens 35 or 20 mm atermalized lens Infrared imager field of view 35 mm – 26° x 20°20 mm – 44° x 33° Pan/Tilt range Unlimited – slip ring on both axes Maximum slew rate Up to 300 °/sec Feedback position resolution * 0.072° or 1.25 mRad De-stabilization ** Less than 250 uRad (1σ) Control interface 1x RS232, 1x auxiliary RS232, up to 3x GPIO with 3.3V levels for external devices control, like video switching, gimbal deployment mechanics control, etc. Video output Daylight camera – 1x component Y Pb Pr up to 1080i or ITU472-3 (PAL)Infrared imager – 1x ITU472-3 (PAL) Both signals (daylight and IR) are available at the same time on the external connector (i.e. no video switching inside gimbal) Weight 1.9 kg Working voltage 18-30 V Power Less than 15 W Control interface RS232, 115200 bps, 8N1, proprietary binary protocol External connector * PC10TB, or customized
