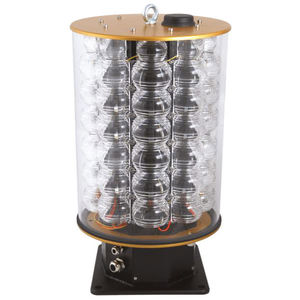

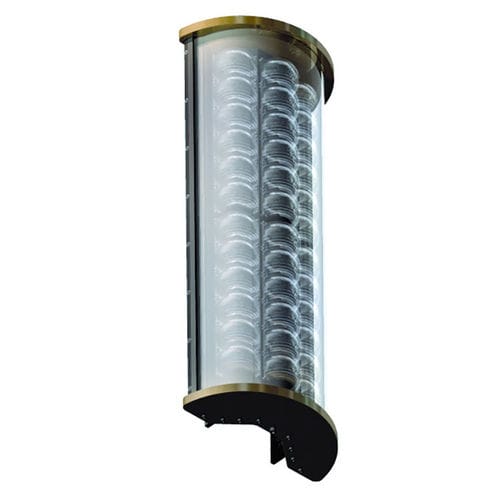

Obstacle light CEL-HI-200KW series

for aircraftLEDflashing

High Intensity 200,000cd white ICAO Type A LED flashing obstacle light CEL-HI-200KW-x Key features - Based on LED-technology - 200,000 / 20,000 / 2,000cd effective flashing white - 120° x 3° beam spread - Extremely reliable - long lifetime - Very low power consumption - Stabilised light output - Lightweight and small – low wind load factor - Easy to install - Patented - Very low total lifetime costs - Comes with five (5) year warranty - Over 10 year continuous, maintenance free operating time - Controlled by CEL LHC Light Head Controller Specifications met - ICAO International Standards and Recommended Practices: Aerodromes - Annex 14 Volume 1, 5th Edition, July 2009, Chapter 6: High-intensity, Type A Fixed Obstacle Light Photometric characteristics - 200,000cd effective intensity @day mode - 20,000cd effective intensity @twilight mode - 2,000cd effective intensity @night mode - Colour aviation white - Horizontal radiation pattern 120° - Vertical radiation pattern 3° Electrical characteristics (with LHC) - Flash rate: 20, 40 and 60fpm - Flash duration: 100, 150, 200 and 250ms - Power consumptions 312 VA @ 40fpm, 250ms - Operating temperature range –55...+70°C - Storage temperature range –55...+100°C - LED supply current stabilized by constant current generator Mechanical characteristics - Marine grade aluminium enclosure - Glass cover - Degree of protection IP65 - Height 843mm, width 353mm , depth 213mm - Height 973mm with mounting set - Weight 27kg, including mounting set 35kg - Mounting set -V or -W include - Wind load @ 200km/h less than 1000N
