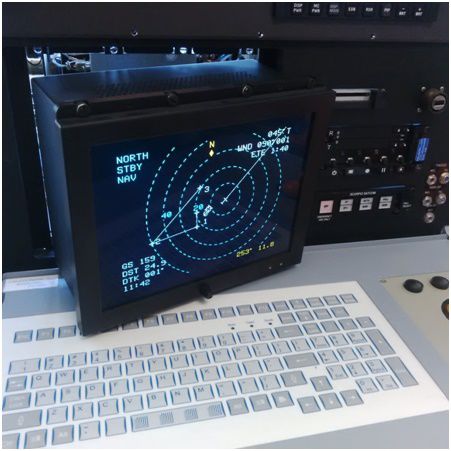

Avionics instrument aircraft cabin display

Caledonian has used this chassis for a number of different display applications. This chassis houses a 10.4 inch wide dynamic range, high brightness, display and was first designed by Caledonian in the mid 1990’s. Applications have included digitisation, display and conversion of non-standard radar video. As an example some eleven units were exported to a North American Navy operating near the equator in 1997 While all units undergo a heavy duty cycle, thus far two units have been returned for repair, one as a result of a accidental impact and another being subject to significant contact with a corrosive liquid. Within this self-contained display there is all the Caledonian electronics assemblies that convert the video, scale the video, switch between different resolutions and standards in a seamless fashion.
