Data connector PCM890

for aircraftRS-232rectangular

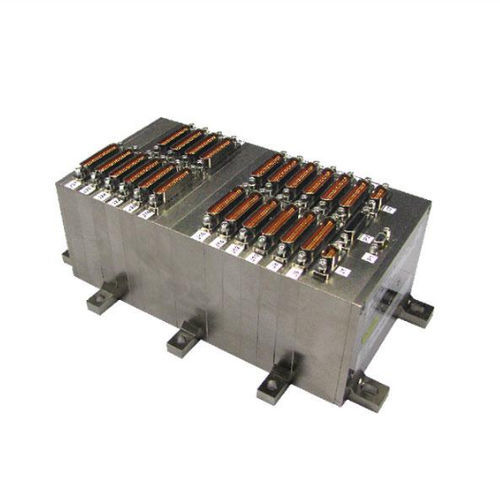

The PCM890 System is the next generation of the highly successful PCM880 series of data acquisition systems. The PCM890 is used for instrumenting missiles, airborne vehicles, and other platforms requiring a small volume ruggedized PCM encoder. The PCM890 is the premier system for acquiring, signal conditioning, and encoding all types of signals. Versatility, flexibility, and ease-of-use are paramount in this system’s hardware and software design. The PCM890 System microprocessor scans the installed hardware, compares it to the user format, and reports discrepancies through the system software. The PCM890 System housings are designed to provide maximum accuracy of test results in the most severe environments. All housings are environmentally sealed with EMI/RFI shielding and gasketing and meet MIL-STD-810E requirements. The PCM890 System is designed to work as a stand-alone encoder or in a Master/Slave configuration. System Specifications Configuration: Base Module with up to 10 Data Modules per Master or Slave system. Set-up and Control: Programmed and controlled via RS-232 serial link to a computer with Windows-based software PCM Bit Rate: Programmable selection of internal or external clock. Internal clock is programmable from 1 kbps to 40 Mbps for NRZ-L and RNRZ-L codes. PCM Frame Size: Minor frames of up to 4096 words. Major frames with up to 256 minor frames, or up to 65,536 total words. PCM Word Size: Individually programmable word lengths from 4 to 16 bits (including optional parity bit) PCM Word Order: Programmable for MSB or LSB first PCM Word Types: Individually programmable for normal, super, sub, or random commutation
