Electric riveting machine IPAC

for rivetsfor aeronauticsautomated

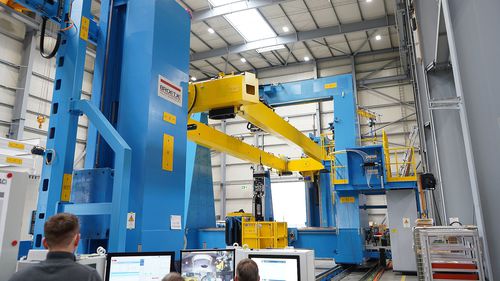

The Integrated Panel Assembly Cell (IPAC) is a high performance panel riveting system. The proven system is one of the best-selling fastening machine concepts world-wide. It is ideal to fasten small to large sized skin and wing panels. The IPAC achieves fastest cycle times, while maintaining superb component quality. The highly adaptable system can be configured with a flexible fixture tooling to allow high workpiece flexibility as well as easy production process integration. The IPAC´s compact design and adjustable station layout enables efficient use of precious shop floor space while keeping investment in building infrastructure to a minimum. The workpiece can be loaded vertically as well as horizontally. With more than 50 installations world-wide the system is well proven in production. TECHNICAL DATA RIVETER Capacity: up to 21ea rivets/min Drill speed: 50 – 18,000 rpm Countersink repeatability: ± 0.0006” (± 0.015 mm) Clamping force: 110 – 600 lbs (50 – 267 daN) Drill spindle feed: up to 300“/min (7,620 mm/min) Material: Aluminum / Titanium / Composite Optional 10/32“ (7.9 mm) Upset force: up to 18,000 lbs (8,000 daN) POSITIONING SYSTEM linear axes X, Y, Z Positioning accuracy linear axis ± 0.2 mm Rotary axes A, B C Positioning accuracy rotary axis ± 60 arc. sec. SPECIAL FEATURES All electric fastening system High speed tool changer for drill chuck and upper anvils High speed / precise drill spindle Sensoric system for: Distance, Normality, Tack-rivet and Edge detection, Countersink Depth, Fastener Head Height, Hole Diameter, Sealant Automated fastener feeding system
