CNC milling machine Link
verticalfor aeronautics3-axis

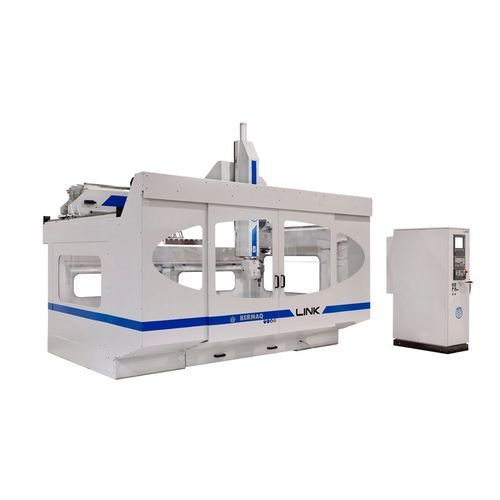

CNC milling machine - Link  - bermaq - vertical / for aeronautics / 3-axis
CNC milling machine - Link  - bermaq - vertical / for aeronautics / 3-axis
CNC milling machine - Link  - bermaq - vertical / for aeronautics / 3-axis - image - 2
CNC milling machine - Link  - bermaq - vertical / for aeronautics / 3-axis - image - 3
CNC milling machine - Link  - bermaq - vertical / for aeronautics / 3-axis - image - 4
CNC milling machine - Link  - bermaq - vertical / for aeronautics / 3-axis - image - 5
Add to favorites
Compare this product


Characteristics

Type
CNC
Spindle orientation
vertical
Other characteristics
for aeronautics, 3-axis
X travel

2,000 mm, 4,000 mm, 6,000 mm
(78.74 in, 157.48 in, 236.22 in)

Y travel

1,650 mm
(64.96 in)

Z travel

800 mm
(31.5 in)

Power

8 kW
(11 hp)

Description

New range of machining centres including 3 or 5 axes. Its structure is compact, powerful, versatile and easy to handle for the machining at high speed of non-ferrous materials (technical plastics, thermoformed plastics and their by-products). The machine has a strong moveable gantry that guarantees high speed working as well as a high precision and quality finishing. Its casing provides complete insulation of moving parts which grants an enormous additional level of safety and environmental cleanliness (noise, fumes, etc). The table structure permits easier loading and unloading of the machined parts. Technical specifications: Machine equipped with 1 working area C Axis = +/- 200º (Harmonic Drive) A Axis= +/-110º (Harmonic Drive) Axes speed: C Axis: 9 000º / min. A Axis: 9 000º / min. X Axis maximum positioning speed of 60 m/min Y Axis maximum positioning speed 60 m/min Z Axis maximum positioning speed 40 m/min Nominal speed: 10 000 rpm Maximum speed: 36 000 rpm HSK / E40 tool tapers Siemens CNC 840 D Applications: This machine is intended for the automotive, nautical, aerospace sectors and those industries specialised in moulds and patterns manufacturing.
