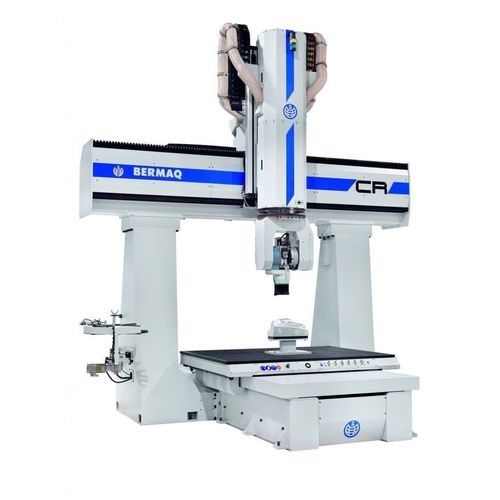

CNC milling machine CR
verticalfor aeronautics3-axis

CNC milling machine - CR - bermaq - vertical / for aeronautics / 3-axis
CNC milling machine - CR - bermaq - vertical / for aeronautics / 3-axis
CNC milling machine - CR - bermaq - vertical / for aeronautics / 3-axis - image - 2
CNC milling machine - CR - bermaq - vertical / for aeronautics / 3-axis - image - 3
CNC milling machine - CR - bermaq - vertical / for aeronautics / 3-axis - image - 4
CNC milling machine - CR - bermaq - vertical / for aeronautics / 3-axis - image - 5
CNC milling machine - CR - bermaq - vertical / for aeronautics / 3-axis - image - 6
Add to favorites
Compare this product


Characteristics

Type
CNC
Spindle orientation
vertical
Other characteristics
for aeronautics, 5-axis or more, 3-axis
X travel

2,000 mm, 3,000 mm
(78.74 in, 118.11 in)

Y travel

1,500 mm, 2,000 mm, 3,000 mm, 4,000 mm
(59.06 in, 78.74 in, 118.11 in, 157.48 in)

Z travel

800 mm, 1,250 mm
(31.5 in, 49.21 in)

Power

8 kW, 12 kW, 16 kW
(11 hp, 16 hp, 22 hp)

Description

The CR milling machine has been specially designed for the machining at high speed of non-ferrous materials such as wood, aluminium, polystyrene and resin. It is a robust and precise machine ideal for the production of patterns and moulds. Its modular structure allows carrying out multiple configurations of 1 or 2 tables and 1 or 2 simultaneous heads, which makes it the perfect machine to execute high productions. Ideal for 5 axes continuous working. Technical specifications: Milling head for composites Choice of automatic or manual tool change HSK tool taper Working table with different dimensions: Working length from 2 000 to 4 000 mm (2 tables) Working width from 1 500 to 2 000 mm AZ-axis working height 1 250 mm (3 axes) Vacuum pump 145 m3/h or 250 m3/h Automatic lubrication Machine personalisation according to our customers’ needs Applications: Pattern industry Handmade works Wood modelling works Aeronautical Industry Nautical Industry Automotive industry Rotary axis: C +/- 200º Pendulum axis: A +/- 110º Maximum speed: X 50m/min Y 50m/min Z 20m/min Rotary axis maximum speed: C 12 600º/min Pendulum axis maximum speed: C 12 600º/min
