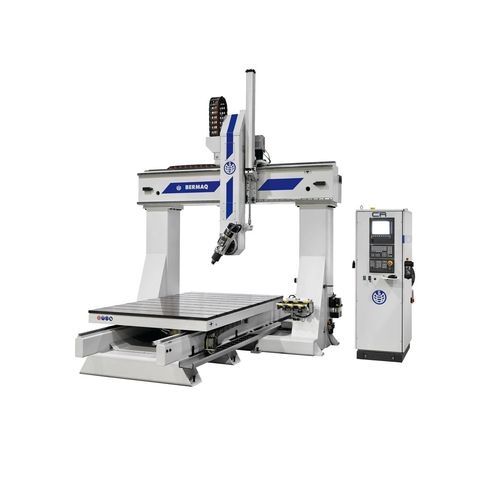

CNC milling machine MX verticalfor aeronautics3-axis
Add to favorites
Compare this product
Characteristics
- Type
- CNC
- Spindle orientation
- vertical
- Other characteristics
- for aeronautics, 5-axis or more, 3-axis, 4-axis
- Power
Max.: 12 kW
(16 hp)Min.: 8 kW
(11 hp)
Description
Milling machine specially designed for high speed machining of non-ferrous materials, polystyrene, titanium, composites, resins, and so on. It may be equipped with 3, 4 or 5 axes head CNC controlled.
Technical Specifications
Milling heads with different possibilities:
Groups for polystyrene
Rotation axis: C+/- 200º
Pendulum Axis: A +/- 110º
Axes max. speed:
X 60m/min
Y 60m/min
Z 20m/min
Rotation Axis max. speed: 12.600º/min
Pendulum Axis max. speed:12.600º/min
Resin bed plate grooved in T-shape
3-12 position tool changer: HSK-F63
Usable working area with different dimensions:
Length: 500 to 3.000 mm
Width: 500 to 2.000 mm
Z-axisusable working height: 1,000 mm (3 axes) and 800 mm (5 axes).
Automatic lubrication
Numerical Control: SIEMENS 840D
Aplications
Model making industry
Nautical industry
Aeronautical industry
Automotive industry
Railway industry
Special applications
