CNC milling machine VISCOM 5X
horizontalfor aeronautics5-axis or more

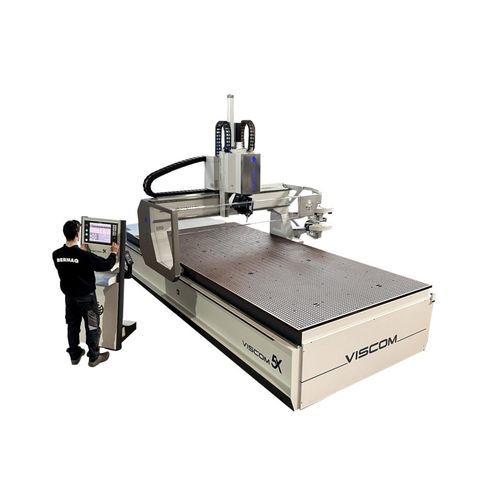

CNC milling machine - VISCOM 5X - bermaq - horizontal / for aeronautics / 5-axis or more
CNC milling machine - VISCOM 5X - bermaq - horizontal / for aeronautics / 5-axis or more
CNC milling machine - VISCOM 5X - bermaq - horizontal / for aeronautics / 5-axis or more - image - 2
CNC milling machine - VISCOM 5X - bermaq - horizontal / for aeronautics / 5-axis or more - image - 3
CNC milling machine - VISCOM 5X - bermaq - horizontal / for aeronautics / 5-axis or more - image - 4
CNC milling machine - VISCOM 5X - bermaq - horizontal / for aeronautics / 5-axis or more - image - 5
CNC milling machine - VISCOM 5X - bermaq - horizontal / for aeronautics / 5-axis or more - image - 6
Add to favorites
Compare this product


Characteristics

Type
CNC
Spindle orientation
horizontal
Other characteristics
for aeronautics, 5-axis or more
X travel

Max.: 10,000 mm
(393.7 in)

Min.: 1,550 mm
(61.02 in)

Y travel

Max.: 3,000 mm
(118.11 in)

Min.: 1,000 mm
(39.37 in)

Z travel

500 mm
(19.69 in)

Power

11 kW
(15 hp)

Description

The CNC milling machine VISCOM 5X has been designed to meet the most demanding machining requirements. Its high productivity, versatility, and state-of-the-art technology allow it to work a wide range of non-ferrous materials (aluminum, wood, foam, resins, plastics, methacrylate, composite, etc.) and to achieve all kinds of shapes and finishes. This 5-axis interpolated CNC router with optimized control is used in machining processes that require high precision and complexity. Thanks to its high customization capacity and multi-purpose performance, the VISCOM 5X is perfect for all sectors (from the graphic arts sector to the aeronautics sector). It is a machine designed to successfully machine general industry projects. This model is also manufactured in 3 axes: VISCOM. Technical specifications Movable bridge structure. Movable control panel. Nominal speed: 12.000 rpm. Maximum speed: 20.000 rpm. Workpiece vacuum clamping: phenolic resin grid table with 8 automatic and independent vacuum zones (configurable from the control panel and even from the machining program), and incorporates threaded metal inserts for clamping workpieces and tools. Also available with micro-perforated aluminum table. Vacuum pump of 290 m³/h or Super turbine of 1.000 m³/h of variable speed. Tooling tester. Automatic lubrication throughout the machine. Choice of CNC control: OSAI, SIEMENS or HEIDENHAIN. Tool change: double turret with 16 positions capacity located on the bridge. 10-tool linear tool change located on the bed (optional), offering a total of 26 positions.

VIDEO
