Flow testing machine 3076

engine gearboxfor oil pumpsaeronautical

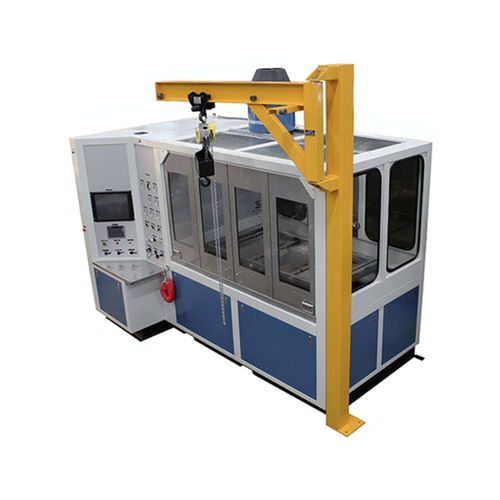

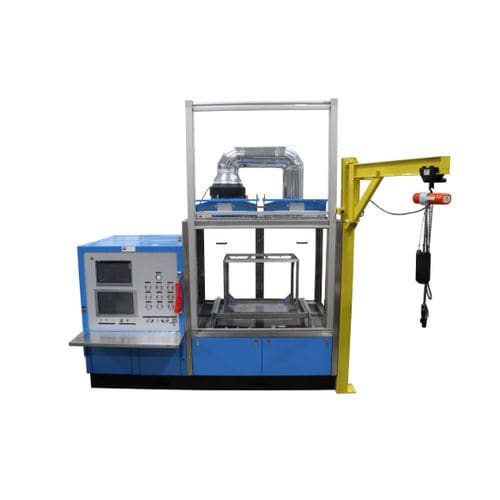

The Bauer Model 3076 Gearbox Oil Flow Test Stand is designed to test the oil nozzles of engine gearboxes utilizing Mil-L-23699 turbine oil in accordance with the applicable CMM test procedures. Oil pumping system capable of supplying up to 10 GPM at pressures up to 200 PSIG PLC-controlled oil temperature conditioning circuit capable of maintaining test temperatures between 95° and 275°F Test cassette slides out from chamber for gearbox mounting/dressing with tooling/hoses without leaning into the test chamber Bauer has produced configurations of this equipment with various features and covering many different aircraft/engine platforms. The Bauer Model 3076 Oil Accessories Test Stand is designed to test a wide variety of non-rotating engine oil accessories utilizing Mil-L-23699 turbine oil in accordance with the applicable CMM test procedures. Oil pumping system capable of supplying up to 30 GPM at pressures up to 300 PSIG PLC-controlled oil temperature conditioning circuit capable of maintaining test temperatures between 80 and 250°F Discrete digital or PC-based instrumentation configurations Pneumatically-driven static pressure pump for proof pressure tests to 3,000 PSIG
