Navigation light NAVIGATOR ULTRA

for aircraftLEDred

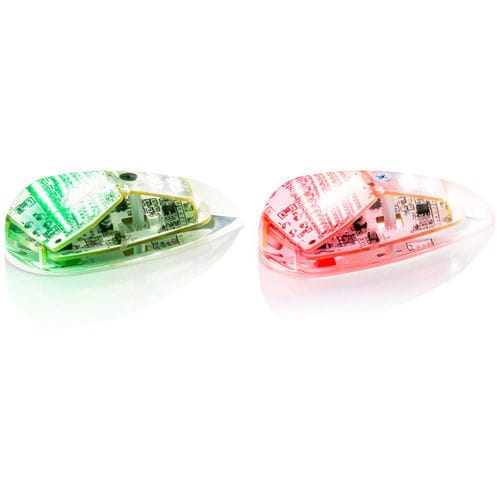

Navigator Ultra wingtip lights are navigation lights (red & green) equipped with synchronized strobe (white) light designed for LSA, Ultralight, KIT and Experimental aircraft. The lights are very compact and efficient, always ensuring you to be clearly visible in the air. The Navigator Ultra lights have synchronized strobe light controller integrated in the lamp capsule. The installation and connection process is much faster, easier and you don't have to look for an extra space for external strobe controllers. Navigator Ultra monolith encapsulation ensures that the lamp is water and vibration resistant. The state of art construction does not allow any dust to come into the lamp and moreover its electronics is protected against reverse polarity connection. Advanced optics together with special reflection system and high brightness CREE LEDs are providing outstanding performance and brightness output much higher than required. Navigation light - YES (red/green) Strobe light - YES (white) Voltage range - 12 V - 15 V Weight (2 lamps) - 170 g Operation temperature range - - 35°C to + 60°C Current - navigation light (2 lamps) - 0.5 A Current - strobe light (2 lamps) - 3.5 A in peak Input power - navigation light (2 lamps) - 4.0 W Input power - strobe light (2 lamps ) - 45 W in peak Navigation light angle - 110° Navigation light luminosity (per lamp) - 450 lm Strobe light luminosity (per lamp) - 2000 lm Encapsulation - Monolith of UV resistant epoxy resin Strobe control unit - Lamp built in Reverse polarity protection - YES Warranty - 2 years
